Assigning an output to trigger an alarm

For alarms to be triggered from an area, you must assign which output will trigger the alarm.

1. From the homepage in Genetec Configuration desktop, open the Intrusion detection task.

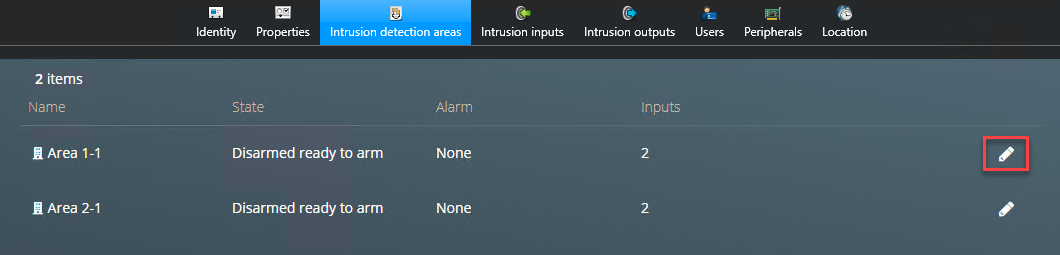

2. From the entity browser, select an intrusion panel and click the Intrusion detection areas tab.
3. Click the edit button associated with the intrusion detection area.

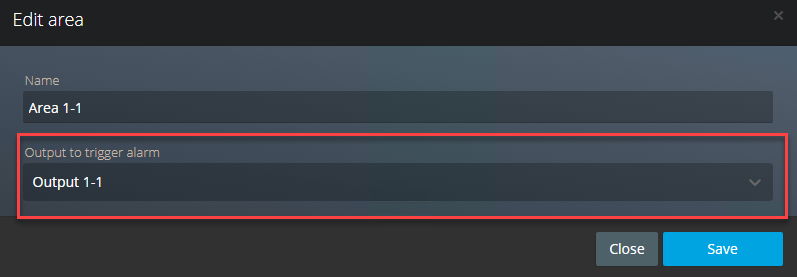

4. In the Edit area dialog box, select an output from the Output to trigger alarm list.

5. Click Save, and then click Apply.
