Modifying intrusion areas, inputs, and outputs

If an intrusion area, input, or output needs to be modified, you can change its settings in Genetec™ Configuration desktop.

1. In Genetec™ Configuration desktop, open the Intrusion detection task.
2. In the entity browser, expand the Intrusion role and click an intrusion panel.



3. To modify an intrusion detection area:

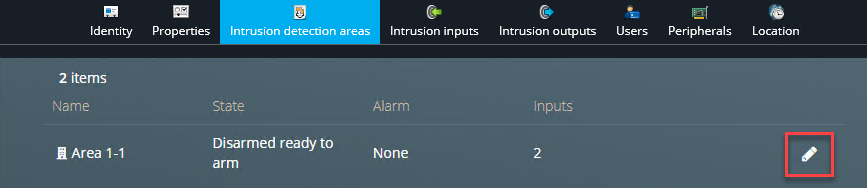

   1. Click the Intrusion detection areas tab.
   2. Click beside the area that you want to edit.

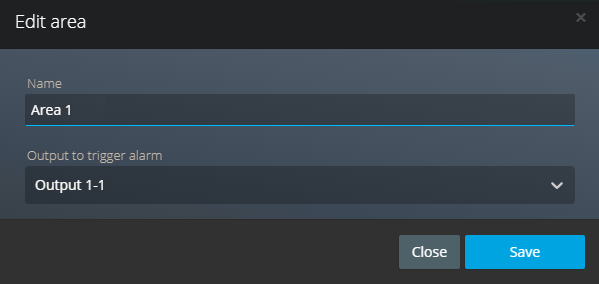

      The Edit area dialog box opens.
   3. Enter a name in the Name field.
   4. Select an output from the Output to trigger alarm list.
   5. Click Save.

4. To modify an input:
   1. Click the Intrusion inputs tab.
   2. Click beside the area that you want to edit.



      The Edit input dialog box opens.
   3. Enter a name in the Name field.
   4. Select a contact type from the Contact type list.
   5. Select a resistor type from the EOL resistor scheme list.
   6. Click Save.
5. To modify an output:
   1. Click the Intrusion outputs tab.
   2. Click beside the area that you want to edit.



      The Edit output dialog box opens.
   3. Enter a name in the Name field.
   4. Click Save.
6. Click Apply.
