Creating a reusable tile layout

To provide users with quick access to a consistent view of certain entities, you can create reusable tile layouts.

1. From the navigation menu, click Tiles.
2. Click Change tile pattern and select a tile pattern.

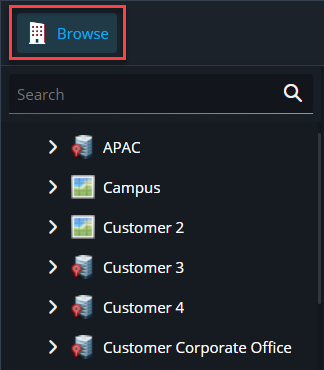

3. Click Browse ().



   A panel opens, displaying the entities available to the user.
4. Drag the entities that you want to monitor to tiles.
5. Right-click any tile and select Save layout.
   The Save layout dialog box opens.
6. Specify the details of the tile layout:

   Name

   Enter a name for the tile layout.

   Association

   Select the area that the tile layout belongs to.

   Partitions

   Select the partition that the layout belongs to.

7. Click Save.
   The layout is displayed in the list of areas and entities, nested under its associated area or Directory.
