Modifying intrusion panel inputs

If an intrusion input requires renaming, you can modify its name in Genetec™ Configuration desktop.

1. In Genetec Configuration desktop, open the Intrusion detection task.
2. In the entity browser, expand the intrusion role and click an intrusion panel.

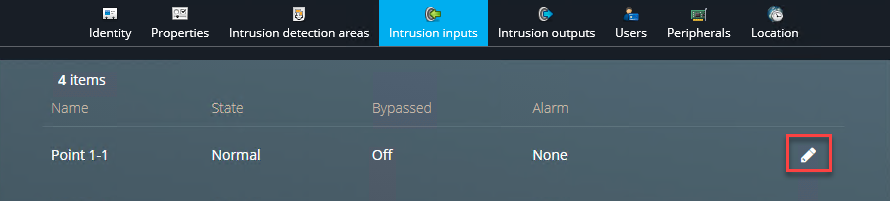

3. Click the Intrusion inputs tab.
4. Click beside the area that you want to edit.

5. In the Edit inputs dialog box, do the following:
   1. Enter a name in the Name field.
   2. Select a contact type from the Contact type list.
   3. Select a resistor type from the EOL resistor scheme list.
   4. Click Save.
6. Click Apply.
